Model
SE-50
Model SE-50
Supporting details
Additional line-level notes will continue to be expanded from the approved source files for this model.
Suction Units

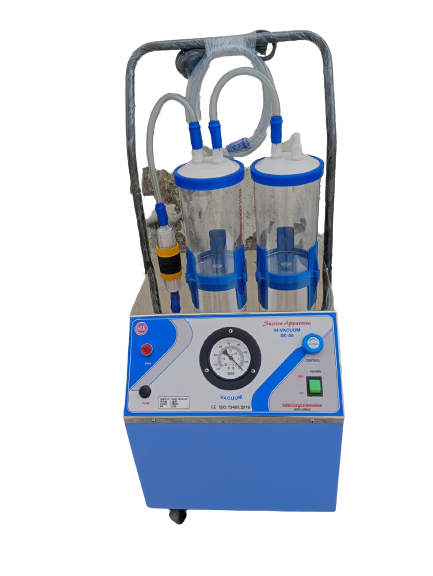

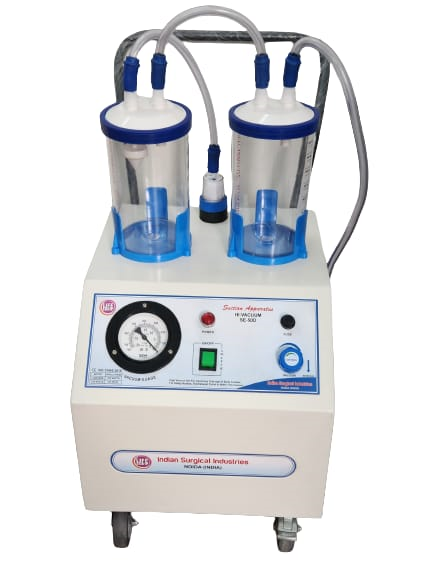

Suction Unit 0.5HP
Suction Unit 0.5HP is part of the Indian Surgical Industries range and is available in 2 model options. Representative models include SE-50, SEM-50.
- Available in 2 model options.
Approved Product Views10 images
Variant Matrix
Compare the model lineup at a glance.
This table surfaces the shared decision columns for the family so procurement teams can compare capacities, sizes, and configuration differences quickly.
| Model |
|---|
| SE-50 |
| SEM-50 |
Model Details
Switch between models for specification-level review.
Each model keeps its own attributes, supporting notes, and approved imagery under the same family page.
Model
SEM-50
Model SEM-50
Supporting details
- A medium capacity vacuum suction unit
- Suction Unit 0.5HP
- Mounted on 4 Seivel castors
- Body constructed from M.S. Sheet and epoxy power coated with S.S top
- Side panel fitted with A.C. power socket and Pedal socket for foot switch
- Panel fitted with vaccum gauge, power-switch with indicator, vacuum contral knob
- one jar fitted with over-flow cut -off Device
- Supplied with suction tubing.
- Technical Specification:
- Capacity: (- 760mmHg ±10 having a flow rate of appox 40 to 45ltr/min)
- Double Jar: 2 x 1.5 Lit. graduated glass with rubber lids
- Pump: oil immersed vacuum pump
- operates on 220-240V 50Hz. A.C. mains
- Optional accessories on extra cost
- Foot Switch
- Suction Canula (Metal)
- Bacterial Filter
- Polycarbonate jars instead of glass
- Available in all S.S. body
